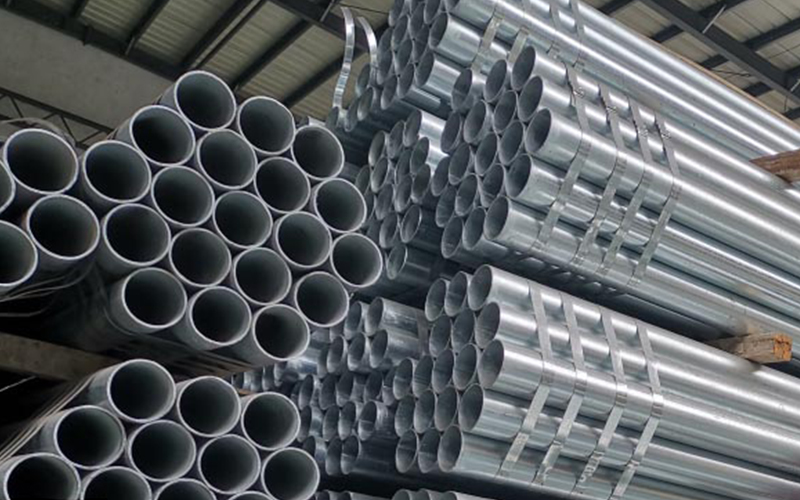

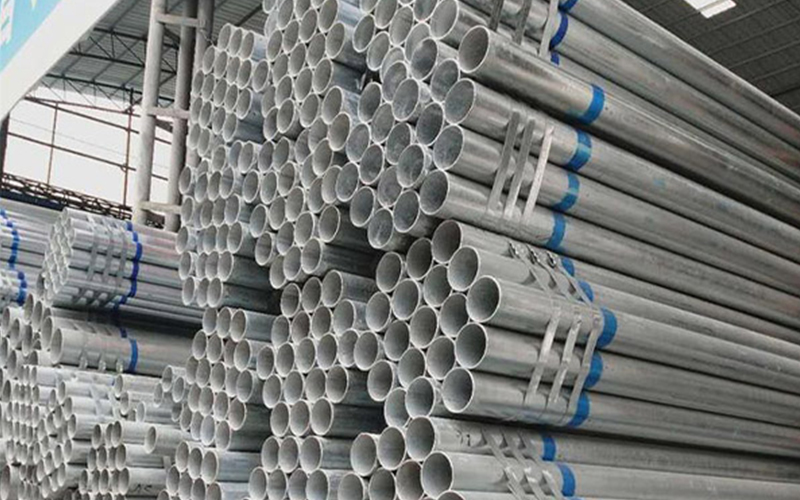

Galvanized pipe

1. Competitive price and quality from our own factory

2. Approved by IS09001, CE, SGS every year

3. Best service with 24 hour's reply

4. Flexible payment with T/T,L/C

5. Quick delivery and standard exporting package


Product specification and description

Galvanized steel pipe refers to a welded steel pipe with a hot dip plating or electric galvanized layer on the surface, which is a special treatment to enhance the corrosion resistance of the steel pipe. The galvanized layer can effectively increase the corrosion resistance of the steel pipe, thus extending the service life of the steel pipe. Galvanized steel pipe is widely used in construction, medical, aviation, machinery, shipbuilding, light industry, agriculture and other industries.

Galvanized steel pipe is divided into cold galvanized steel pipe and hot galvanized steel pipe two kinds. Cold galvanized steel pipes have been banned, and hot galvanized steel pipes are heated and molten zinc liquid covered on the surface of the steel pipe to form a coating, and then cooled and solidified. The galvanized steel pipe has the characteristics of thick galvanized layer, smooth surface, strong adhesion, good corrosion resistance and long service life.

The manufacturing process of galvanized steel pipe includes the following steps: First, the steel pipe is pickled to remove the oxide film on the surface; Then hot dip galvanizing or electrogalvanizing; Finally, it is cooled and solidified. After these steps, the galvanized steel pipe is manufactured.

Galvanized steel pipe has a wide range of applications. In the construction field, galvanized steel pipe can be used for building water supply, drainage, heating and other pipeline systems. In the medical field, galvanized steel pipes can be used for the production and processing of medical devices. In the field of aviation, galvanized steel pipes can be used in the manufacture of aircraft, rockets and other aircraft. In the field of mechanical manufacturing, galvanized steel pipes can be used for the manufacture and processing of mechanical parts. In the field of shipbuilding, galvanized steel pipes can be used for the construction and maintenance of ships. In the field of light industry, galvanized steel pipes can be used for the production and processing of light industrial products. In the agricultural sector, galvanized steel pipes can be used for the construction and maintenance of irrigation systems.

In short, galvanized steel pipe is a steel pipe that has been specially treated to enhance its corrosion resistance and is widely used in various fields.
  Material  10#, 20#, 45#, 16Mn, A53(A,B), Q235, Q345, Q195, Q215, St37, St42, St37-2, St35.4, St52.4, ST35
  Wall Thickness  1MM~12MM  Grade  10#-45#, 16Mn, A53-A369, Q195-Q345, ST35-ST52
  Outer Diameter  20MM~508MM  Grade A, Grade B, Grade C
  Length  Length:Single random length/Double random length
  5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques
  Standard  API 5L, ASTM A53-2007, ASTM A671-2006, ASTM A252-1998, ASTM A450-1996, ASME B36.10M-2004,
  ASTM A523-1996, BS 1387, BS EN10296, BS 6323, BS 6363, BS EN10219, GB/T 3091-2001, GB/T 13793-1992, GB/T9711
  Technique  Hot Dip Galvanized Round Steel Pipe
  Packing  Bundle, or with all kinds of colors PVC or as your requirements
  Pipe Ends  Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.
  Surface Treatment  1. Galvanized
  2. PVC,Black and color painting
  3. Transparent oil,anti-rust oil
  4. According to clients requirement
  Product Application  1. Fence, greenhouse, door pipe,greenhouse
  2. Low pressure liquid, water, gas, oil, line pipe
  3. For both indoor and outdoor the building construction
  4. Widely used in scaffolding construction which is much cheaper and convenient

Inspection Of Steel Pipe
Inspection of steel pipes
Our inspection of steel pipes generally includes: inspection of geometric size and surface quality: inspection of chemical composition, mechanical properties, technological properties, inspection of high-low tissue: non-destructive testing: inspection of some special properties and length measurement and weighing.
(1) Check the geometric size of the steel pipe
The outer diameter, wall thickness, bending degree and length of the steel pipe are checked on the inspection table with external calipers, micrometers, bending degree and length winding.
Sometimes, the outer diameter, wall thickness and length are also continuously tested by automatic size detection devices (such as automatic diameter measurement, thickness measurement, length measurement devices). For OCTG steel pipe also need to check the thread parameters.
(2) Check the inner and outer surfaces of the steel pipe
We generally use visual inspection for internal and external surface inspection, and in addition to visual inspection, the internal surface is also inspected by reflection prism. Some special purpose steel pipes also require non-destructive testing, including eddy current, magnetic leakage, ultrasonic, magnetic particle testing, etc., to check the quality of the inner and outer surface of the steel pipe.
(3) Mechanical properties and process performance inspection
In order to verify that the mechanical properties of the steel pipe meet the requirements of the standard, we need to conduct mechanical properties inspection on the steel pipe sampling.
The test of mechanical properties mainly includes tensile strength, yield strength, elongation, impact work, etc. The process performance test mainly includes flattening test, flaring test, water pressure test, flange test, cold bending test, perforating test and so on. These inspection items are selected according to the different standards and the difference in the use of the steel pipe.
(4) Non-destructive inspection
Our non-destructive testing methods include: magnetic leakage testing, ultrasonic testing, eddy current and fluorescent magnetic particle testing, ultrasonic spectrum analysis testing, ultrasonic imaging testing and ultrasonic high temperature testing

Material introduction

Galvanized steel is a kind of steel after galvanized processing, which can effectively prevent steel corrosion and rust, thereby extending the service life of steel.

The coating of galvanized steel has strong toughness and can withstand mechanical damage during transportation and use. Galvanized steel is mainly used in the construction and manufacturing industry, because of its corrosion resistance, high strength, good durability, is widely used in a variety of building structures and mechanical equipment.

The coating of galvanized steel is usually divided into two kinds: electric galvanizing and hot-dip galvanizing, of which hot-dip galvanizing has a better anti-corrosion effect. Galvanized steel is often used in building external walls, glass curtain walls, marble curtain walls and other columns and stress materials, or used in outdoor telecommunications towers, highways and other open-air buildings.

Warehouse display

We have a large steel product warehouse with a large inventory covering a wide range of specifications and types of products. Whatever specifications you need, we can provide them quickly, ensuring that your project is not affected by material shortages. Our product inventory is updated in real time, with new products coming into stock every day. This means that even in the case of high demand, we can guarantee a stable supply and avoid the risk of running out of stock. Our warehouse facilities are complete, with a sound storage and logistics system. This allows us to quickly complete the product entry, storage and exit work, ensuring that your ordered products can be delivered in a timely manner.

Stainless steel warehouse
Carbon steel warehouse
Alloy warehouse
Aluminum warehouse
Other product warehouse

Product application

Each batch of our products will be subjected to strict quality testing before leaving the warehouse, we can also accept your designated third party testing agency for quality inspection and quality certificate, to ensure that all products do not have quality problems and can be perfectly applied to various fields.

Sewer pipe
Pipeline transportation
High pressure pipeline
Agricultural irrigation
Condenser copper tube
Water supply pipeline
